Loaded Fathom – For the Last Mile (Or Every Mile)

Flatspot has always been a fan of the push! Maybe you’ve heard? #WalkingIsForChumps! From commuting around town to long paths in the woods of North Vancouver, we even skated across a country. We just love to be out on a board. Over the years we’ve tried a lot of things. We chased those long treks on Demonseeds, we snubbed up 35 inch switchblades with tkps, and we’ve been cutting custom platform decks for brackets for as long as there have been brackets. Having the gear that makes your distance melt away makes all the difference. There really isn’t a need to struggle with that anymore. Introducing the Loaded Fathom and G-Bomb Zee Bracket. Loaded has worked to offer a new light weight, super strong, cost effective bracket system that lets you use easy to access parts like Paris Trucks and Orangatang wheels.. and the Loaded Fathom platform of course!… to build a personalized setup thats going to keep you pushing and pumping all day long. We’ll make another post to go into more details about the Zee bracket itself and all the DIY options, but lets look at the full package, the Loaded Fathom Complete option, first!

Loaded Fathom – For the Last Mile (Or Every Mile)

Introducing the Loaded Fathom, the longboard that blurs the boundaries of what a skateboard can be.

The Fathom is one of the easiest boards to ride in the world, and a ton of fun. Built around the new Loaded Zee Bracket truck mounting system. With large wheels and a low ride height, the Fathom reimagines soulful commuting and urban exploration.

ZEE BRACKET — This proprietary composite bracket designed by the wizards at GBomb allows us to build unique and functional next-gen skate vehicles with double-drop (drop-through and drop-down) truck mounting.

SPEED — Built for speed and momentum. With its large (up to 105mm) wheels and agile trucks, the Fathom bridges the gap between board and bike, easily reaching and sustaining commuting speeds that surpass the comfort zone of conventional skateboards. Get a workout, explore the roads less traveled, or get to class/work without breaking a sweat. It’s up to you.

CONTROL — The Fathom is stable and easy to control, even at high commuting speeds. The low ride height provides stability and ease of pushing and foot braking. The wide deck further enhances confidence, while upturned deck corners reduce the chance of footbite.

FUN — Double-drop brackets and relatively narrow trucks make this board surprisingly responsive and agile. A board with wheels this size has no right to turn this well.

  • Loaded – Fathom Complete – 105mm 80a Dad Bods

    $529.99CAD

    Loaded X G-Bomb Fathom Complete Zee Bracket Mounting System With Paris 150mm and 105mm 80a Dad Bods Complete

    Introducing the Loaded Fathom, the longboard that blurs the boundaries of what a skateboard can be.

    The Fathom is one of the easiest boards to ride in the world and a ton of fun. Built around the new Loaded Zee Bracket truck mounting system. With large wheels and a low ride height, the Fathom reimagines soulful commuting and urban exploration.

    LONGBOARD SPECS
    • Length: 33″ / 83.8 cm (complete), 23″ / 58.4 cm (deck)
    • Width: 9.25″ / 23.5 cm
    • Wheelbase: 26.5″ / 67.3 cm (complete), 17.25″ / 43.8 cm (deck)
    • Profile: slight camber
    • Flex: subtle
    • Weight: 9.6 lb / 4.4 kg (Dad Bod), 8.4 lb / 3.8 kg (Caguama), 3.1 lb / 1.4 kg (deck)
    • Designed for riders up to 250 lb / 113 kg under normal use. Riders 250-300 lb / 113-136 kg should minimize aggressive pumping.

    COMPLETE SETUP
    • Bracket: Loaded Zee Bracket (NEW)
    • Trucks: Paris V2 150mm 50° (raw)
    • Wheels: Orangatang 105mm Dad Bod (80a, orange)
    • Bearings: Loaded Jehu V2
    • Hardware: Loaded (two sets: 1.25″ at deck, 1″ at trucks)

  • Loaded – Fathom Complete – 85mm 77a Caguama

    $469.99CAD

    Loaded X G-Bomb Fathom Complete Zee Bracket Mounting System With Paris 150mm and 85mm 77a Caguama Complete

    Introducing the Loaded Fathom, the longboard that blurs the boundaries of what a skateboard can be.

    The Fathom is one of the easiest boards to ride in the world and a ton of fun. Built around the new Loaded Zee Bracket truck mounting system. With large wheels and a low ride height, the Fathom reimagines soulful commuting and urban exploration.

    LONGBOARD SPECS
    • Length: 33″ / 83.8 cm (complete), 23″ / 58.4 cm (deck)
    • Width: 9.25″ / 23.5 cm
    • Wheelbase: 26.5″ / 67.3 cm (complete), 17.25″ / 43.8 cm (deck)
    • Profile: slight camber
    • Flex: subtle
    • Weight: 9.6 lb / 4.4 kg (Dad Bod), 8.4 lb / 3.8 kg (Caguama), 3.1 lb / 1.4 kg (deck)
    • Designed for riders up to 250 lb / 113 kg under normal use. Riders 250-300 lb / 113-136 kg should minimize aggressive pumping.

    COMPLETE SETUP
    • Bracket: Loaded Zee Bracket (NEW)
    • Trucks: Paris V2 150mm 50° (raw)
    • Wheels: 85mm Caguama (77a, blue)
    • Bearings: Loaded Jehu V2
    • Hardware: Loaded (two sets: 1.25″ at deck, 1″ at trucks)

TWO SETUPS — Featuring Paris 150mm trucks and your choice of 105mm Dad Bod (80a orange) or 85mm Caguama (77a blue) wheels. The Dad Bod setup is a blast to ride, carries massive momentum, and can go over anything for easy cruising. The Caguama setup is a fun, approachable alternative, providing quick acceleration and a lower stance. Here at Loaded we vastly prefer to ride the Dad Bod setup because of its epic rollover power, but you know, you do you!

CONSTRUCTION — 8-ply maple construction, slight camber for road-smoothing suspension, and lifted corners (with more aggressive grip tape) to lock in your feet and reduce the chance of foot bite. Large enough for comfort but compact enough to carry on public transportation and stow under your desk.

GRAPHIC — To evoke the spirit of adventure and exploration, the current graphic was inspired by the historic Polynesian expansion and their mind-boggling oceanic navigation. Nanastudio created this collage based on Polynesian ships and artifacts.

The Zee Bracket system is also available as a standalone package, arriving with two brackets and directions on how to cut out and DIY your own cruising machine. Cut down an old board or heck, cut down an old coffee table and get creative to make your own longboard dreams come true!

Professor Hildenberger is currently in line for an advance screening of Barbie, so our very own Juhyeok Park is filling in to walk you through every small detail that went in to the creation of this brave new board. Tune in to see the Fathom in a whole new light and learn more about how much you will undoubtedly love it.

Downtown Los Angeles is home to some of the most heavily car-centric infrastructure in the country, yet the automobile need not be our default mode of transportation. DTLA denizen and Loaded ambassador Ari Chamasmany is well versed in skating for both pleasure and practicality.

Whether you count on your longboard to carry you the last mile or to push through every mile, the Loaded Fathom ensures that your journey is as fun and effortless as it can be.

  • Loaded – Fathom Complete – 105mm 80a Dad Bods

    $529.99CAD

    Loaded X G-Bomb Fathom Complete Zee Bracket Mounting System With Paris 150mm and 105mm 80a Dad Bods Complete

    Introducing the Loaded Fathom, the longboard that blurs the boundaries of what a skateboard can be.

    The Fathom is one of the easiest boards to ride in the world and a ton of fun. Built around the new Loaded Zee Bracket truck mounting system. With large wheels and a low ride height, the Fathom reimagines soulful commuting and urban exploration.

    LONGBOARD SPECS
    • Length: 33″ / 83.8 cm (complete), 23″ / 58.4 cm (deck)
    • Width: 9.25″ / 23.5 cm
    • Wheelbase: 26.5″ / 67.3 cm (complete), 17.25″ / 43.8 cm (deck)
    • Profile: slight camber
    • Flex: subtle
    • Weight: 9.6 lb / 4.4 kg (Dad Bod), 8.4 lb / 3.8 kg (Caguama), 3.1 lb / 1.4 kg (deck)
    • Designed for riders up to 250 lb / 113 kg under normal use. Riders 250-300 lb / 113-136 kg should minimize aggressive pumping.

    COMPLETE SETUP
    • Bracket: Loaded Zee Bracket (NEW)
    • Trucks: Paris V2 150mm 50° (raw)
    • Wheels: Orangatang 105mm Dad Bod (80a, orange)
    • Bearings: Loaded Jehu V2
    • Hardware: Loaded (two sets: 1.25″ at deck, 1″ at trucks)

  • Loaded – Fathom Platform – Deck

    $179.99CAD

    LoadedLoaded Fathom Platform Deck Long Distance Longboard

    * Platform Deck only, Not a complete. Will need additional parts to complete.

    LONGBOARD SPECS
    • Length: 23″ / 58.4 cm (deck)
    • Width: 9.25″ / 23.5 cm
    • Wheelbase: 17.25″ / 43.8 cm (deck)
    • Profile: slight camber
    • Flex: subtle
    • Weight: 3.1 lb / 1.4 kg (deck)

    CONSTRUCTION
    Featuring 8-ply maple construction, slight camber for road-smoothing suspension, and lifted corners (with more aggressive grip tape) to lock in your feet and reduce the chance of foot bite. Large enough for comfort but compact enough to carry on public transportation and stow under your desk.

  • Loaded – Fathom Complete – 85mm 77a Caguama

    $469.99CAD

    Loaded X G-Bomb Fathom Complete Zee Bracket Mounting System With Paris 150mm and 85mm 77a Caguama Complete

    Introducing the Loaded Fathom, the longboard that blurs the boundaries of what a skateboard can be.

    The Fathom is one of the easiest boards to ride in the world and a ton of fun. Built around the new Loaded Zee Bracket truck mounting system. With large wheels and a low ride height, the Fathom reimagines soulful commuting and urban exploration.

    LONGBOARD SPECS
    • Length: 33″ / 83.8 cm (complete), 23″ / 58.4 cm (deck)
    • Width: 9.25″ / 23.5 cm
    • Wheelbase: 26.5″ / 67.3 cm (complete), 17.25″ / 43.8 cm (deck)
    • Profile: slight camber
    • Flex: subtle
    • Weight: 9.6 lb / 4.4 kg (Dad Bod), 8.4 lb / 3.8 kg (Caguama), 3.1 lb / 1.4 kg (deck)
    • Designed for riders up to 250 lb / 113 kg under normal use. Riders 250-300 lb / 113-136 kg should minimize aggressive pumping.

    COMPLETE SETUP
    • Bracket: Loaded Zee Bracket (NEW)
    • Trucks: Paris V2 150mm 50° (raw)
    • Wheels: 85mm Caguama (77a, blue)
    • Bearings: Loaded Jehu V2
    • Hardware: Loaded (two sets: 1.25″ at deck, 1″ at trucks)

  • Loaded X G-Bomb Zee Bracket Mounting System

    $79.99CAD

    Loaded X G-Bomb Zee Bracket Mounting System

    Contents: two (2) Zee Brackets, eight (8) O-rings

    Features:

    Lowers ride height by about 1.5″ / 3.8 cm compared to a top mounted skateboard
    Big Wheels: accommodates wheels between 75 and 105 mm with no wheelbite
    Super Stiff: made from fiber-reinforced automotive-grade resin
    Vibration Damping: Eight urethane O-ring vibration dampers (four per bracket)
    Trucks: Works with a variety of trucks between 150 and 180 mm. Reverse Kingpin (like Paris, Bear, Caliber) recommended. Works with standard street decks using existing truck mounting holes.

    Recommended equipment:

    Big Wheels (75-105mm)
    Reverse Kingpin Trucks (150-180mm)
    Bearings
    Skate Hardware (two sets)
    Griptape
    Deck: Create your own deck out of an old street deck, a longboard deck, an old snowboard, a plank of wood, your mom’s priceless coffee table, etc.

    Dimensions:
    Length: 8.25″ / 21.0 cm
    Width: 3.25″ / 8.26 cm
    Height: 2.25″ / 5.72 cm
    Weight (pair): 0.875 lb / 0.4 kg
    Two Zee Brackets add 9.25″ / 23.5 cm to deck wheelbase
    Designed for riders up to 250 lb / 113 kg under normal use. Riders 250-300 lb / 113-136 kg should minimize aggressive pumping.

  • Orangatang – Dad Bod – 105mm / 80a

    $219.99CAD

    Orangatang Wheels – Dad Bod – 105mm / 80a Orange Distance Push Longboard

    WHEEL SPECS
    Diameter: 105mm
    Width: 62mm
    Contact Patch: 57mm
    Style: Rounded lips with surface skin
    Bearing Seat: Offset
    Formula: Happy Thane
    Core: TrypoCore
    Weight (per wheel): 15 oz / 428 g
    Durometers: 80a

    NOW AVAILABLE IN 77A BLUE AS WELL!!

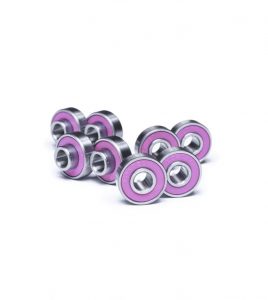

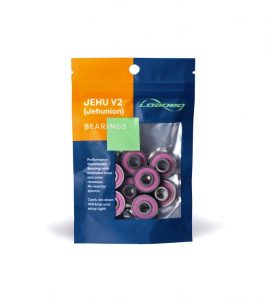

  • Loaded – Jehunion JEHU V2 – Bearings

    $27.99CAD

    • Extended inner raceways to eliminate the need for separate spacers and speed rings
    • Rubberized steel shields for durability and ease of maintenance
    • Highest-grade chromium steel
    • Interior step ring to maintain constant lubrication

  • Paris – V3 Polished – 150mm 50°

    $78.99CAD

    The Paris V3 150mm trucks are good for:
    turning fast
    narrower boards

    The Paris V3 Features:

    – Proprietary Alloy Forming Process
    – True T6 Heat Treatment
    – Stronger, Redesigned Hanger
    – SCM440 Alloy Steel Axles
    – Improved 90a Urethane Bushing Formula
    – Redesigned Conical Bushing Shape
    – Lighter, Reinforced Baseplate
    – Redesigned SCM435 Alloy Steel Kingpins
    – 96a Hand Poured Urethane Pivot Cups
    – 50° Baseplate Marker Symbols

  • Orangatang – Caguama – 85mm / 77a (Blue)

    $98.99CAD

    Diameter: 85mm
    Width: 58.5mm
    Contact Patch: 56mm
    Durometers: 80a, 83a and NOW 77a!
    Bearing Seat: Offset
    Formula: Happy Thane
    Core: high-strength, high-stiffness, heat-resistant urethane

  • Orangatang – Caguama – 85mm/80a/83a

    $98.99CAD

    WHEEL SPECS

    Diameter: 85mm
    Width: 58.5mm
    Contact Patch: 56mm
    Durometers: 80a, 83a
    Bearing Seat: Offset
    Formula: Happy Thane
    Core: high-strength, high-stiffness, heat-resistant urethane

    Voluptuous urethane (proportionate in all the right places) for high speed with grip, comfort, and momentum.
