Seismic – Aeon Trucks – Bushings

Description

Seismic Skate Systems – Aeon Reverse Kingpin RKP Trucks – Bushings

Bushings for Seismic® Aeon™ Trucks

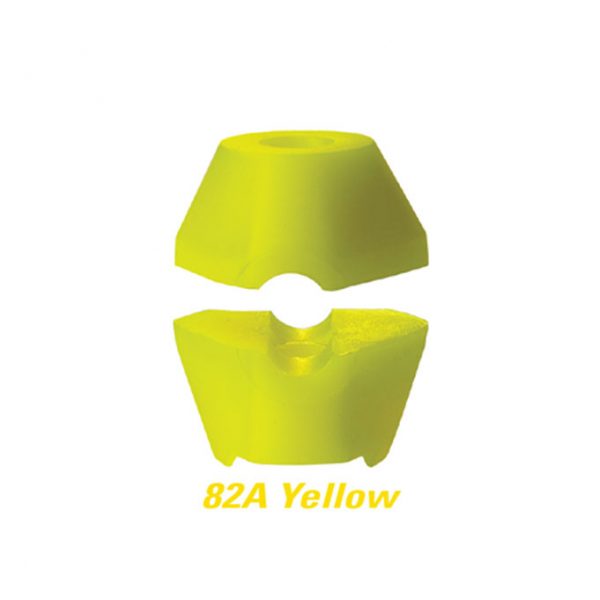

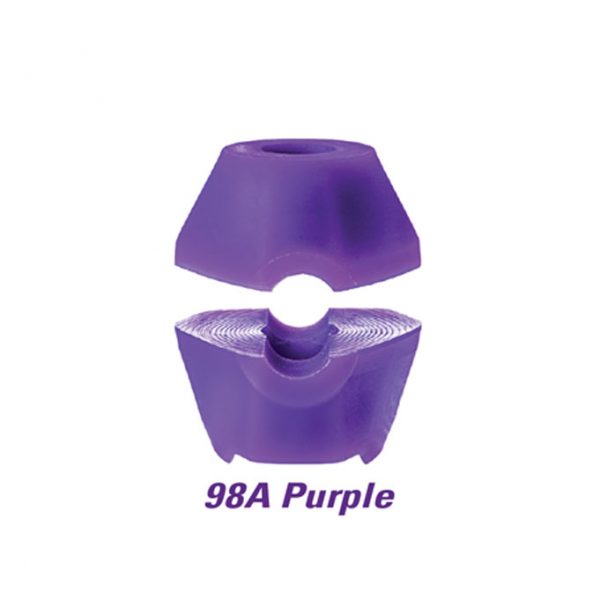

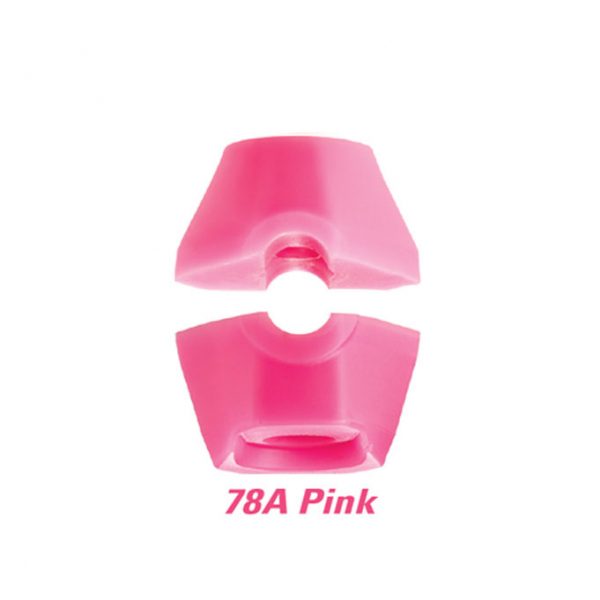

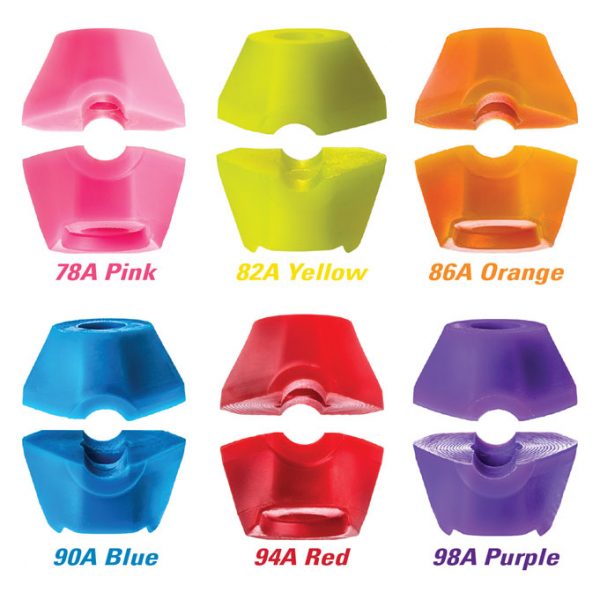

Available in six (6) color-coded hardnesses, including NEW 78A pink and 82A yellow.
Self-lubricating formula to prevent squeaking.
Price is for a single matched pair of one (1) Board-Side and one (1) Road-Side bushing – enough for one (1) truck.

Advanced Control
• Beyond Barrel vs. Cone: Aeon bushings have a wide hexagonal shape and tapering sides. Creates smooth, intuitive resistance profile through a larger steering range.
• Tall but not too tall, for deep turns with no dive.

Precision Fit
• Custom contouring creates mechanical lock between Board-Side (BS) bushing and baseplate – no washer needed.

Cylindrical Bearing Built Directly Into Bushing-Hanger Interface – A Revolution in RKP Truck Engineering!
• Concave channels (“races”) on bushing faces wrap around “rollers” built in to hanger bushing seats.
• Patented Aeon “TrueTurn” tech forms working cylindrical bearing with no added parts. (See exploded view in second image.)
• Centers and guides hanger rotation, in tight alignment with pivot axis – without the downsides of support pins, spherical bearing inserts, or hanger plugs.
• Eliminates slop, significantly stabilizes geometry even at deepest lean angles – so much so that 45° Aeons turn as much as most ordinary RKP trucks that claim steeper geometry.
